RIGrunner: DC Power Solutions Made Easy!
The RIGrunner product line offers the most convenient and safest way to connect all your 12VDC equipment to a power source. RIGrunner utilizes a 13.8VDC power panel with simple-to-use Anderson Powerpole® connectors. Standardize all of your 12VDC connections using the amateur radio ARES & RACES, RSGB, ARRL Powerpole® system. Contact us for alternate voltage versions up to 55VDC or for your custom RIGrunner requirements. West Mountain Radio also offers network DC power controllers in the 4005i product line.
West Mountain Radio offers RIGrunners for every station and every budget. The table below can assist you while determining which RIGrunner suits your needs. To learn more about specific models, click on the model name within the table. A Detailed RIGrunner Comparison Chart is also available.
DC Power Distribution
| Model | Total Max Amperage | Max Outlet Amperage | Number of Outlets | Precision Power Monitor | Master Device or Vehicle Detect w/Timer | USB Charge Ports | Horizontal Configuration | Price | Buy | |
|---|---|---|---|---|---|---|---|---|---|---|

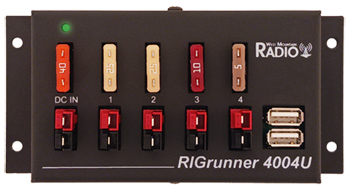

| RIGrunner 4004 USB |  |
40A | 40A | 4 |  2 |
$89.95 | Buy Now | |||

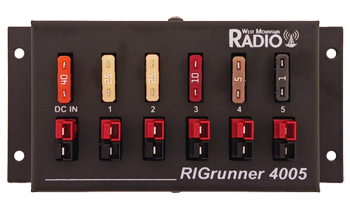

| RIGrunner 4005 |  |
40A | 40A | 5 | $79.95 | Buy Now | ||||

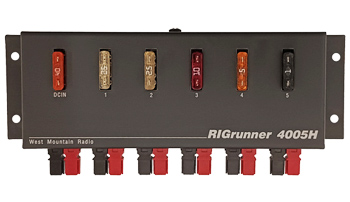

| RIGrunner 4005H |  |
40A | 40A | 5 | |
$79.95 | More Info | |||

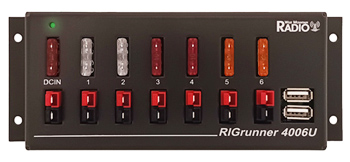

| RIGrunner 4006U |  |
40A | 40A | 6 | 2 |
$119.95 | More Info | |||

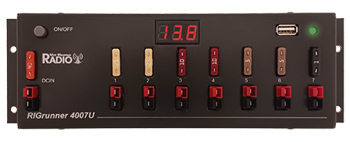

| RIGrunner 4007U |  |
40A | 40A | 7 | 3-digit voltage current display w/Auto Shut-off |
ON/OFF Pushbutton |
1 |
$169.95 | More Info | |

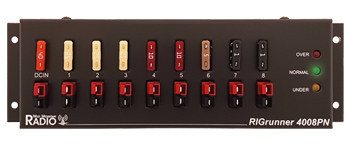

| RIGrunner 4008 |  |
40A | 40A | 8 | Audible Alert 3 LED status |
$114.95 | More Info | |||

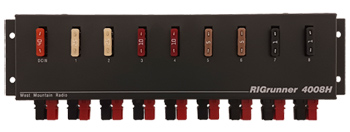

| RIGrunner 4008H |  |
40A | 40A | 8 | |
$114.95 | Buy Now | |||

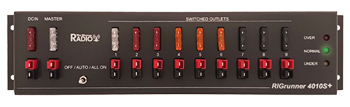

| RIGrunner 4010S+ |  |
40A | 40A | 10 | Audible Alert 3 LED status |
Auto Outlet |
$179.95 | More Info | ||
| RIGrunner 4012 |  |
40A | 40A | 12 | Audible Alert 3 LED status |
$129.95 | More Info | |||

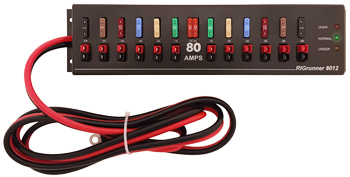

| RIGrunner 8012 |  |
80A | 40A | 12 | Audible Alert 3 LED status |
$195.95 | More Info | |||
| Product Details | ||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
RIGrunner 4004 USB
$89.95
|
||||||||||||||
RIGrunner 4005
$79.95
|
||||||||||||||
RIGrunner 4005H
$79.95
|
||||||||||||||
RIGrunner 4006U
$119.95
|
||||||||||||||
RIGrunner 4007U
$169.95
|
||||||||||||||
RIGrunner 4008
$114.95
|
||||||||||||||
RIGrunner 4008H
$114.95
|
||||||||||||||
RIGrunner 4010S+
$179.95
|
||||||||||||||
RIGrunner 4012
$129.95
|
||||||||||||||
RIGrunner 8012
$195.95
|
Internet DC Power Control and Monitoring
| Model | Supply Voltage | Total Max Amperage | Max Outlet Amperage | Number of Outlets | Power Over IP | WiFi | Price | Buy | |
|---|---|---|---|---|---|---|---|---|---|

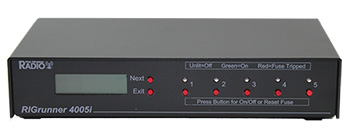

| RIGrunner 4005i |  |
12V | 40A | 40A | 5 | |
$279.95 | More Info | |

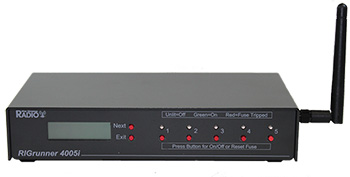

| RIGrunner 4005i with WiFi |  |
12V | 40A | 40A | 5 | |
|
$329.95 | More Info |
| RIGrunner 10010i Rackmount |  |
12V | 100A | 40A | 10 | |
$549.95 | More Info | |
| RIGrunner 4005i - 24V Positive | |
+10V to +30V |
40A | 40A | 5 | |
$284.95 | More Info | |
| Product Details | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
RIGrunner 4005i
$279.95
|
||||||||||||
RIGrunner 4005i with WiFi
$329.95
|
||||||||||||
RIGrunner 10010i Rackmount
$549.95
|
||||||||||||
RIGrunner 4005i - 24V Positive
$284.95
|
Alternate Voltage Versions of the RIGrunner (24-48VDC)
| Model | Supply Voltage | Total Max Amperage | Max Outlet Amperage | Number of Outlets | Precision Power Monitor with Audible Alert | Price | Buy | |
|---|---|---|---|---|---|---|---|---|

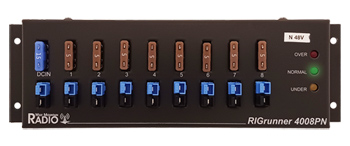

| RIGrunner 4008 - 48V Negative |  |
-46V to -60V |
40A | 40A | 8 | |
$174.95 | Buy Now |

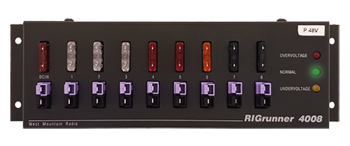

| RIGrunner 4008 - 48V Positive |  |
+46V to +60V |
40A | 40A | 8 | |
$134.95 | More Info |

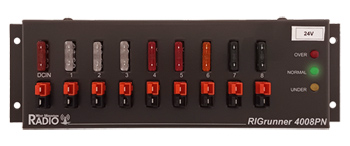

| RIGrunner 4008 - 24V Positive |  |
+23V to +30V |
40A | 40A | 8 | |
$134.95 | More Info |
| Product Details | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|
RIGrunner 4008 - 48V Negative
$174.95
|
||||||||||
RIGrunner 4008 - 48V Positive
$134.95
|
||||||||||
RIGrunner 4008 - 24V Positive
$134.95
|
RIGrunner Features
Anderson Powerpole® Connectors Provide Interoperability for Emergency Communications
- Our Powerpole® configuration conforms to the ARES, RACES, RSGB standard, and ARRL recommendation for high current 12VDC connectors.
- Safe secure, HOT CONNECT, polarized, color keyed, genderless connector system.
- No messy binding posts, frayed wire connections, black tape or short circuits!
- A full array of quick change Powerpole® power supply, extension and adapter cables available
High Current Capability
- High current! More than enough 12V power for your station. Pick the appropriate model
- Each outlet may be used at full ratings: transceivers, amplifiers or any accessory
- The 8012 is conservatively rated at 80A total with any outlet good to 40A
- Models 40xx are conservatively rated at 40A total with any outlet good to 40A
- 4004, 4005, 4008 & 4012 models can use any output jack as the power input with full ratings
Protected with Electronic Solid State Fuses or Readily Available ATC/ATO Fuses
- 4005i features electronic fuses with user configurable trip points, 1 to 40A
- Each outlet is individually fused with automotive ATC/ATO fuses on other models. Shipped with appropriate fuses installed
- Fuses are quick change; accessible from the outside using high quality fuse holders
- ATC/ATO auto fuses are easy to get and are available in 10 values from 1 to 40A
Power Monitoring and Alerts
- Precision window comparator quick status power monitor, makes a voltage problem obvious
- LED over and under voltage indicators instantly indicate a problem, without interpretation
- An audio alert is configurable to alarm on overvoltage or under voltage (both on 4010, 8012, 4012 & 4008 only) or may be disabled.
- Each fuse has a handy blown fuse LED illuminator to show short circuit problems instantly
- 4005i can issue alarm emails
RF Suppression
- RF suppression on each outlet suppresses RF leakage between equipment. Keeps your power supply in regulation
