BackorderAdd to Wish List

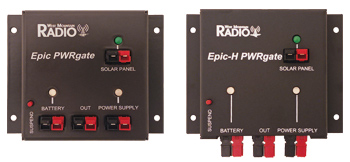

Epic PWRgate
#58404-1673
$189.95
Click for Details
- Epic PWRgate Unit
- USB-micro Cable
- (4) Retention Clips
- Owner's Manual
- Reference Card for LED Indicators
BackorderAdd to Wish List
Epic-H PWRgate
#58404-1795
$189.95
Click for Details
- Epic-H PWRgate Unit
- USB-micro Cable
- (4) Retention Clips
- Owner's Manual
- Reference Card for LED Indicators
The Epic PWRgate is West Mountain Radio's 3rd generation power gate product. It uses advanced technology to achieve a very low power loss and has maximum flexibility to charge modern batteries. Both models are the same with exception of the Powerpole® orientation.
- Epic PWRgate is a 12 volt backup power system rated at 40 amperes continuous from either a Power Supply or a Battery.
- Connected equipment will instantly switch to battery during a power blackout or power supply failure.
- Low loss PWRgate provides forward voltage drop of only 0.05 volts.
- USB port access to monitor system or to change charge parameters.
- Program for specific battery types.
- Supports smart charging of either Lead Acid or Li-Ion battery charging up to 10A.
- Supports power supply or direct solar panel (MPPT) battery charging for all battery chemistries. Solar panel VOC must be <= 30V.
- Maximum Power Point Transfer (MPPT) charging provides the maximum power out of a solar panel.
- Can be programmed for vehicle use to suspend charging when the alternator is off.
- Complete LED status indicators.
- Battery charge suspend button to eliminate current draw or charger noise for 30 minutes. Possible RFI may be emitted from MPPT charge controller.
- Optional temperature probe to control charging based on battery temperature.
- Solid, durable construction in an aluminum case. Includes mounting holes for convenient and secure use in mobile units.
- Uses Anderson Powerpole® connectors.
Please click here for more information on Powerpole® Connectors.
Specifications
Maximum Voltage: | PS 16V / Solar 30V |
Maximum Current: | 40 Amperes |
Maximum Charge Current: | 10A |
Voltage Drop: | 0.05VDC |
Connectors: | Anderson Powerpole®, 45A |
Size: | 4.5 x 3.375 x 1.25 in |
Weight: | 0.35 lbs |
Mounting Holes: | Four - 0.175 d, #8 hardware |
Charging Circuit: |
Jumper |
Lead Acid |
AGM |
LiFePO4 |
Charge Voltage |
13.85V |
14.4V |
14.5V |
Charge Current |
1, 5 or 10 amps |
1, 5, 10 amps |
1, 5, 10 amps |
Stop Charge Current |
0.25A |
0.25A |
0.5A |
Trickle Charge |
0.15A |
0.15A |
0A |
Recharge Voltage |
12.1V |
12.1V |
12.6V |
Max Charge Time |
25 hrs |
25 hrs |
25 hrs |
Retry Time |
4 hrs |
4 hrs |
4 hrs |
Chemistry |
Lead Acid |
AGM |
LiFePO4 |
Min PS Volts |
13.9V |
14.45V |
14.45V |
Lowest Temp (F) |
0 |
0 |
35 |
Highest Temp (F) |
120 |
120 |
110 |
Use Temp for Charge |
Yes |
Yes |
No |
|
*Note: The above parameters may also be changed via the USB interface.
Quality Declaration
Product designed, tested and used by ham radio operators onsite.
Includes
- Epic PWRgate Unit
- USB-micro Cable
- (4) Retention Clips
- Owner's Manual
- Reference Card for LED Indicators
