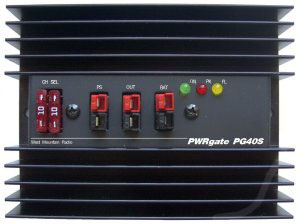

- A Super PWRgate is a 12 volt backup power system rated at 40 amperes continuous from either a Power Supply or a Battery.
- The Super PWRgate has a built-in four-stage battery charger with selectable current rates of 1, 4, 7 or 10 amperes.
- Connected equipment will instantly switch to battery during a power blackout or power supply failure.
- Uses two 80 ampere Schottky diodes as an OR-Gate to isolate the battery and power supply from each other.
- Low loss PWRgate provides forward voltage drop of less than 0.3 volts at 20A and 0.37 volts at 40A.
- Optimized for use with GELLED & AGM type batteries, but will keep flooded lead acid and marine type batteries near full charge as well.
- Solid, durable construction in an aluminum case with heat sink. Includes mounting holes for convenient and secure use in mobile units.
- Uses Anderson Powerpole® connectors
- Dimensions: 1.65" H x 5.25" W x 3.9" D
Please click here for more information on Powerpole® Connectors.
Specifications
| Maximum Voltage: | 18 Volts DC |
| Maximum Current: | 40 Amperes |
| Circuit: | Diode OR-Gate |
| Diodes: | Two Schottky 80 Ampere, 20 Volt |
| Voltage Drop: | 0.25 Vdc at 1 Ampere
0.37 Vdc at 40 Ampere |
| Charging Circuit: | Smart, linear charger
Fuse switched for 1,4,7 or 10 Amperes (±5%) maximum
Peak voltage limit: 13.8 (Gelled), 14.2 (AGM),(±2%)
Peak voltage limit set via internal jumper to GELLED or AGM
Peak voltage terminate point: 0.1 Maximum current
Float Voltage: 13.5 volts (±2%)
|
| LEDs: | Green - Indicates charger is "ON"
Red - Indicates peak "PK" charge voltage
Yellow - Indicates Float "FL" voltage |
| Connectors: | Anderson Powerpole®, 40A |
| Dimensions: | 1.65" H x 5.25" W x 3.9" D |
| Weight: | 0.9 lbs, 0.4 kg (aluminum enclosure with heat sink) |
| Mounting Holes: | Two, 0.175 in. d, at a distance 4.875 in., for #8 hardware |
Please click here for more information on Powerpole® Connectors.
