RIGrunner 4004 USB
#58315-1043
$89.95
Click for Details
- (4) Rubber Feet
- (4) 3M Adhesive Pads
- Owner's Manual
Features

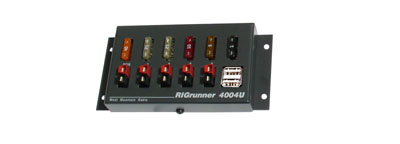

The RIGrunner 4004U can deliver up to 40 amps total through 4 outlets and includes a dual USB Type-A socket for charging all your portable devices that need a USB socket for charging.
- Each port has an RFI protection capacitor
- Each fuse has a blown LED
- Each port uses high current Anderson Powerpole® connectors with 0.001 ohm contact resistance
Please click here for more information on Powerpole® Connectors.
Specifications
| Overall Dimensions (maximum, w/o cables) | 1.4" H x 4.7" W x 3.0" D |
| Weight | 7.2 oz. |
| Maximum total current | 40 amps |
| Maximum single individual outlet current | 40 amps (fuse protected) |
| ICAS current rating (fuse limited) | 37 amps |
| USB charge current | 4A max for both ports |
Construction
- Built in USA to IPC-610 commercial manufacturing standards by an ISO9002 facility.
- Printed circuit board .062 FR4 material, extra heavy 3oz. copper, with greater than 1" wide high current traces.
- Double sided, plated through holes, solder mask over bare copper, silk screened commercial grade printed circuit board.
- Enclosure: .062 aluminum, with attractive and extremely durable powder coat painting and clear silk screen labels.
- Power connectors: exclusively Anderson Power Products® Powerpole®.
- Connectors are arranged according to the ARES/RACES standard (see our links).
- Fuses installed are standard ATC/ATO automotive fuses available in 10 values from 1 to 40 Amps.
- Stainless steel hardware with PEM™ threaded mounting standoffs.
Includes
- (4) 3M Adhesive Pads
- (4) Rubber Feet
- Owner's Manual
Power
Powerpole® Cables
Powerpole® is a registered trademark of Anderson Power Products.
Powerpole® Connector Features & Benefits
- Genderless Housings: Provide simplified assembly and minimize the number of components
- Stackable Modular Housings: Available in four sizes to right size your connection need
- Connection Versatility: Contacts for wire, PCB, or busbar all fit into the same housings
- Low Resistance Connection: Silver or tin plated contacts inside housings that strongly force the contacts together
- Color Coded Housings: Help ensure that connectors are assembled and mated correctly
- Self Securing Design: Stainless steel springs create a robust force between the contacts that holds the connector in the mated condition, but allows it to be quickly disconnected.
Anderson Powerpole® Connectors and General Installation Tips
| Powerpole® Connectors | |||
|---|---|---|---|
| 15A | 30A | 45A | |
| Amps (UL) Per Pole | 0 to 55 | 0 to 55 | 0 to 55 |
| Volts (UL) Per Pole | 600 | 600 | 600 |
| Amps Continuous | 15 | 30 | 45 |
| Wire Gauge (AWG) | 20 - 16 | 16 - 12 | 14 - 10 |
| Touchsafe Polarized Housing |
Yes Yes |
Yes Yes |
Yes Yes |
