Powerpole® Connector Packs
All packs consist of red/black housings and select contacts.
Contacts available for 15A, 30A & 45A.
Contacts available for 15A, 30A & 45A.
12 Pair Powerpole® Connector Pack
Please select:
15A contacts$15.95#58257-1093
30A contacts$15.95#58257-1095
45A contacts$20.95#58257-1099
100 Pair Powerpole® Connector Pack
Please select:
15A contacts$84.95#58257-1094
30A contacts$84.95#58257-1096
45A contacts$124.95#58257-1100

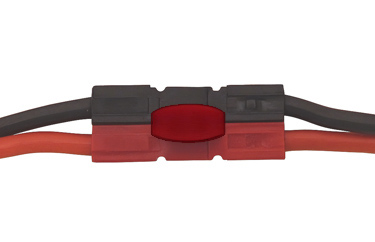

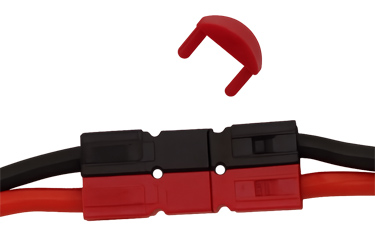

Powerpole® Retention Clips - 12 Pack
#58257-1092
$8.95
Click for Details
Prevent Powerpole® blocks from unintended disconnects. Features a tab for easy insertion and removal. Use with horizontal RIGrunner models.
- Genderless housings provide simplified assembly and minimize the number of components.
- Low resistance connection with silver or tin plated contacts inside housing that strongly force contacts together.
- Color coded housings ensure connectors are assembled and mated correctly.
- 15A, 30A, and 45A contacts fit into same housing.
- Packs sold with Red/Black. Send Request for other colors available: orange, green, yellow, brown, blue.
Retention clips for your Powerpole® connections. For use with RIGrunner 4005H, 4008H, 4005i, 10010i, Epic PWRgate, N8XJK Super Booster, PWRguard Plus, ISOpwr+, PWRcheck+, PWRbrite, Power Supply Cables and Extension Cables.
Powerpole® Retention Clips are not for use on the Super PWRgate PG40S and other RIGrunners not listed above.
Powerpole® is a registered trademark of Anderson Power Products.
Powerpole® Connector Features & Benefits
- Genderless Housings: Provide simplified assembly and minimize the number of components
- Stackable Modular Housings: Available in four sizes to right size your connection need
- Connection Versatility: Contacts for wire, PCB, or busbar all fit into the same housings
- Low Resistance Connection: Silver or tin plated contacts inside housings that strongly force the contacts together
- Color Coded Housings: Help ensure that connectors are assembled and mated correctly
- Self Securing Design: Stainless steel springs create a robust force between the contacts that holds the connector in the mated condition, but allows it to be quickly disconnected.
Anderson Powerpole® Connectors and General Installation Tips
| Powerpole® Connectors | |||
|---|---|---|---|
| 15A | 30A | 45A | |
| Amps (UL) Per Pole | 0 to 55 | 0 to 55 | 0 to 55 |
| Volts (UL) Per Pole | 600 | 600 | 600 |
| Amps Continuous | 15 | 30 | 45 |
| Wire Gauge (AWG) | 20 - 16 | 16 - 12 | 14 - 10 |
| Touchsafe Polarized Housing |
Yes Yes |
Yes Yes |
Yes Yes |
| PDF Files Links |
Data Sheet https://www.andersonpower.com/ |
||
