| IMPORTANT READ FIRST! |
| This page is for support on the Plus model
only, if you have a Pro, nomic, M8, M4, or RJ, go back and select the correct page.
If you are looking for help setting up software go to our OpTips page! |
|
| RIGblaster Plus OWNERS MANUAL |
| The latest 5th Edition plus owners manual is available here in
.pdf format.
|
| RIGblaster Plus Owners Manual |
|
| USB TO DB9 SERIAL ADAPTOR DRIVER INSTALLATION |
Use these instructions to install our USB cable for your RIGblaster if, AND ONLY IF, your cable looks EXACTLY like the one pictured below!
|
 |
Most new computers are no longer supplied with serial ports and all ham radio sound card programs that transmit are written to control PTT with a serail port. Therefore,
your RIGblaster, if purchased recently, is supplied with two cables to provide your choice, and full functionality, with both older DB9 RS232 serial ports, or with
a USB connection. The supplied USB cable will emulate a DB9 RS232 serial port by converting a USB (universal serial buss) to a RS232 port.
Check your computer to see if you have an available DB9 RS232 serial port. If you do, use the supplied DB9 male to DB9 female cable supplied.
Set asided the USB to DB9 cable aside for future use. If you only have an available USB socket, use the supplied USB to DB9 cable instead.
To use
this USB cable pictured above, follow these hardware driver software installation instructions.
Windows, 98SE, ME, 2000 and XP ONLY:
USB driver file for Windows 98SE - XP ONLY! To download and save to your hard drive download, Click Here!
1) Download and run the program above to copy the necessary drivers to your hard drive.
2) Plug the USB connector into an available USB socket on your computer.
3) A “New hardware found” window will pop up.
4) Browse to and highlight the C: \ RIGblaster USB drivers folder created by the above download.
5) Allow Windows to complete the “Found New Hardware” installation (Do not cancel, stop or abort the installation: NO MATTER WHAT!)
6) You have completed the USB hardware driver installation at this point.
RIGblaster USB Converter Installation Check:
1) Right click “My Computer” and then left click “Properties”
2) Select the “Hardware” tab.
3) Select “Device Manager”
4) Click the + symbol next to “Ports (COM & LPT)”
5) Check that you see the item: “Prolific USB-to-Serial Comm Port (COMx)”
6) Make a note of the what the COM number is for x in (COMx)
7) Setup your ham radio sound card programs to use that COM port number.
If you have carefully followed these instructions and you do not find the Prolific USB-to-Serial Comm Port under Ports (COM & LPT) you may
wish to call West Mountain Radio telephone support. Call only if you ae sitting in front of your ham station computer in order for us to help.
|
Windows Vista and Windows 7, ONLY
Windows, Vista Windows 7, driver pre-installer download, Click Here!
NOTE: If you
have already installed the driver from the CDROM that came with your RIGblaster, and the adaptor is working, there is no reason to install this driver.
Do not plug the cable into a USB port!!!
1) Click the download link above and "Run"
2) When a "User Account Control" window pops up saying unknown publisher left click "Yes"
3) When "Welcome to the InstallShield Wizard for PL-2030" appears left click "Next"
4) Left click the radio button to accept the terms and conditions and left click "Next"
5) Left click "Finish"
6) Now plug the cable into a USB port.
7) A balloon will pop up at bottom right that says "Installing Device Driver Software"
8) A balloon will pop up at bottom right that says "Prolific USB-to-Serial Comm Port (COMxx)””Device driver software installed successfully.”
9) Make note of the COM port number assigned (xx) as you will need this to set up Amateur Radio programs.
10) Close all windows this completes the driver installation.
|
|
| WHY WE USE JUMPERS INSIDE RIGblasters |
|
|
Windows/ME WARNING! or "My RIGblaster is stuck in transmit after Windows boots up."
|
|
Windows/ME (Millennium Edition) has been reported by many RIGblaster owners as causing a problem.
After boot up Windows/Me leaves the DTR line of the com ports in a high state causing the RIGblaster to keep your rig keyed up.
If you have Windows/ME, and only Windows/ME there is a Microsoft fix for this problem. It is described on the Microsoft site as Data Terminal Ready (DTR) Line Set to HIGH After Starting Windows Me (Q285894).
|
|
The fix described on the Microsoft page referenced above can be downloaded here.
The file (285894.zip) is a zip file and will need to be unzipped with any of the many available unzip utilities.
Running this will extract (un compress) two files. (285894USAM.EXE and hotfix.txt).
Follow the instructions in hotfix.txt to implement this fix on your copy of Windows/ME.
Again, this fix applies to Windows/ME only. It will not install on other versions Windows.
|
|
| ATTENTION TenTec ORION II & OMNI VII OWNERS |
GOOD NEWS!. The TenTec ORION II and the OMNI VII were released with 8 pin microphone connectors unlike previous TenTec radios that incorporated a 4 pin microphone connector.
Here are the jumpering diagrams for these radios.
RIGblaster pro
RIGblaster Plus
RIGblaster M8
RIGblaster nomic
Please note, these jumpering diagrams are for these TenTec radios only. |
|
| ATTENTION TenTec ORION OWNERS |
|
In a Manual Addendum for the TenTec Orion, dated October 22, 2003, TenTec released new information regarding microphone wiring.
In this addendum, they stated:
"Please refer to page 10 of the manual.
Disregard the wiring diagram for microphones as shown in Figure 2-4.
Use Figure 2-5 for proper microphone wiring diagram"
"Please note: The microphone cable shield must be tied to the transciever's microphone connector shell.
That is normally done by clamping the shield runner under the strain-relief clamp of the connector.
Refer to Figure 2-5.
TenTec microphones and the Heil/TenTec Studio One R9625 cable sold by TenTec are already wired as such -- many cables (such as other Heil cables) are NOT."
When a TenTec Orion is used with a RIGblaster Plus, the optional "4 to 8 Pin Conversion Kit" is required to accommodate the Orion's 4 pin microphone connector.
However our 4 to 8 Pin Conversion Kit does not currently connect the shells of the 4 pin connectors thus user modification is necessary.
Fortunately we have great customers and one of them, Tom WA1MDO, has sent us a "Mod" that will solve this issue and electrically connect the 4 pin connector shells of the conversion kit.
Thanks Tom!!!
This mod is available in PDF format at www.westmountainradio.com/pdf/Orion_jumpers.pdf.
Please note, Tom illustrates jumpering using the RIGblaster pro jumper block. When jumpering for the RIGblaster Plus, ignore the pins labeled "RX AUDIO" as they apply only to the RIGblaster pro. |
|
| ATTENTION Kenwood TS-480SAT & TS-480HX OWNERS |
|
We recently learned that Kenwood has reversed two of the pins on the microphone connector of their TS-480SAT and TS-480HX which makes the Kenwood RJ45 jumpering Diagram found in our RIGblaster Plus Owners Manual incorrect for these radios.
Here is the correct Kenwood TS-480SAT & TS-480HX Jumpering Diagram. |
|
HP Computer with Windows/XP Pre-Loaded RIGblaster stuck in transmit after Windows/XP boots
|
New HP Computers having Windows/XP pre-loaded have been reported by several RIGblaster owners as causing a problem that previously only happened on Windows/ME.
After boot up the DTR line of the Com ports are in a high state causing the RIGblaster to keep your rig keyed up.
If you have Windows/XP, pre-loaded on a new HP Computer here is a possible fix for this problem.
The solution from HP Tech Support suggests going to the Device Manager and removing all the Communications Port(COMx)s, as listed under Ports (COM & LPT), then re-boot Windows/XP and it will reinstall the drivers and the problem should go away.
This solution was provided by GEORGE MANNING/K1CG who after several trys finally got to the right tech at HP who suggested the above fix.
If you have this problem, we suggest you call HP Tech Support at 208-323-2551 and reference Case Number 1544508374.
|
|
| PALM PILOT WARNING! or my RIGblaster is stuck in transmit
after Windows boots up. |
| Note: Palm Pilot software with any version of Windows
will cause the same problem if your RIGblaster is plugged in to the serial port that the Palm Pilot cradle is supposed to be
plugged in to. If you have a little Palm Pilot icon with red and blue and arrows pointing towards the center of a circle in
your system tray (the system tray is down at the bottom right corner of your screen where the date is) your RIGblaster will not
work properly.
To fix the Palm Pilot problem either move the RIGblaster to a different serial port connection or do the following:
go to "Start", "Programs", "Palm Desktop", and run "Palm Desktop". From the pull downs in the Palm Desktop software, select
"HotSync", "Setup" and go to the "General" tab; un-check "Always available [put in Startup folder]". Re-start Windows and the
problem will be gone. Next time you wish to use your Palm Pilot, just use the Palm Desktop program. |
| Top of Page |
|
| Using RIGblaster Plus (8 pin screw on) with a Modular RJ45 radio. |
| Our CrissCross 8 pin screw on to RJ45 instruction sheet in
.pdf format for viewing or printing. You will need Adobe Acrobat Reader (included on our CD) to read it. |
CrissCross instruction sheet with diagrams for Yaesu, Kenwood & Icom.
(see below for Alinco) |
| If you would like the jumper diagrams in color they are below
under M8 8 PIN TO RJ MODULAR CRISSCROSS MICROPHONE JUMPER DIAGRAMS. |
| Top of Page |
|
| Adapting RIGblaster Plus for use with Icom IC-756PROII External Keypad |
| This is a contribution by Mike Flowers, K6MKF. |
| Look at or Download the PDF Document |
| To download the file, Right click on the link, then select "Save Target as..." |
 Wiring diagram for the User External Keypad |
| Top of Page |
|
| JUMPER QUESTIONS? |
| The diagrams in our manual should be obvious but in case
you are not sure here is an explanation. Note: we supply the same package of jumpers with every RIGblaster whether you need them
all or not, do not be surprised if have some jumpers left over; this is normal. The small rectangles (not squares) on our
diagrams depict the blue colored 2 pin shunts. The blue jumpers are used to connect across from input to output to pass wiring
straight through without connecting to the RIGblaster circuitry or they may be used to connect the ground tie pins together.
The wire jumpers are used separately and symmetrically; half on the input side and half on the output side circuitry. The
RIGblaster ONLY intercepts the mic audio, mic ground, PTT and PTT ground pins of your mic.
Look at your radio's microphone wiring diagram and you should be able to figure out your own jumper diagram and check it
against ours. If you are unsure about your radio matching our "typical" diagrams please fax us a clear copy of your radios'
mic. wiring and we will fax or e-mail a special diagram back to you. Once you have the jumpers installed it is mandatory that
you make sure that your mic. works completely normally. If you do not check your mic. for normal operation before trying your
computer you may waste a lot of your time. Check all the buttons and switches on your mic. and get on the air reports to make
sure it is working properly. Just because the needles move when you talk doesn't mean everything is hooked up correctly. You
could have an open or reversed grounds and still get almost normal meter indications. CHECK YOUR MIC OPERATION FIRST before
trying the computer! |
| Top of Page |
|
| 8 PIN ROUND SCREW ON MICROPHONE JUMPER DIAGRAMS |

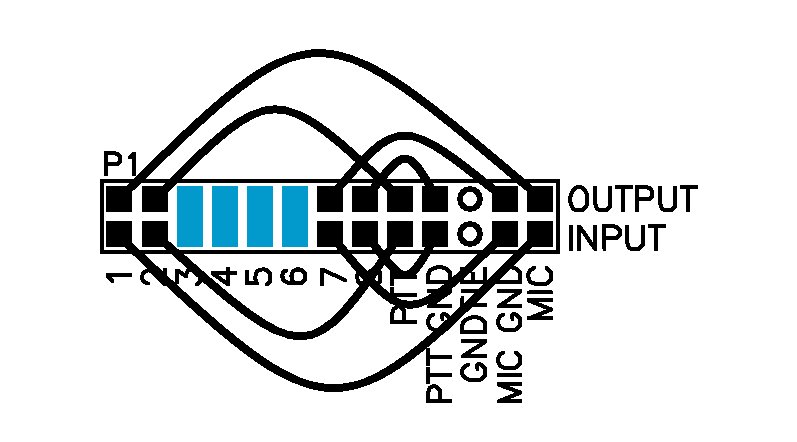

| Typical Alinco 8 pin |
| JRC JST245 8 pin |

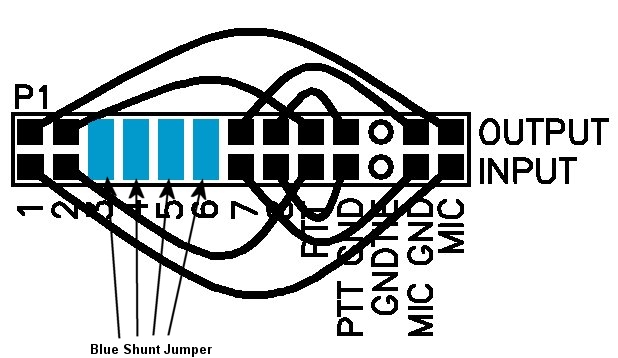

| Typical Kenwood and SGC-2020 8 pin |

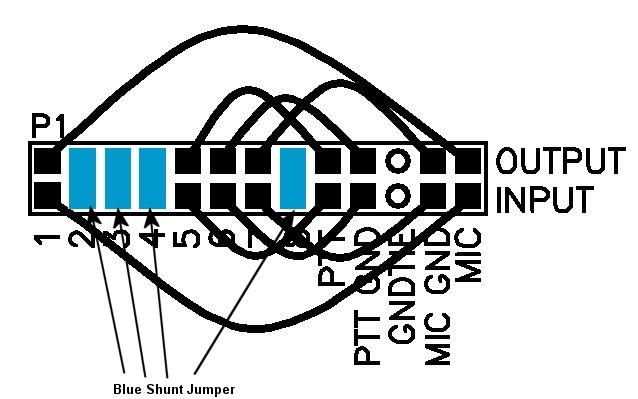

| All Icom 8 pin |
| Typical older Yaesu 8pin including FT1000 and FT1000D |

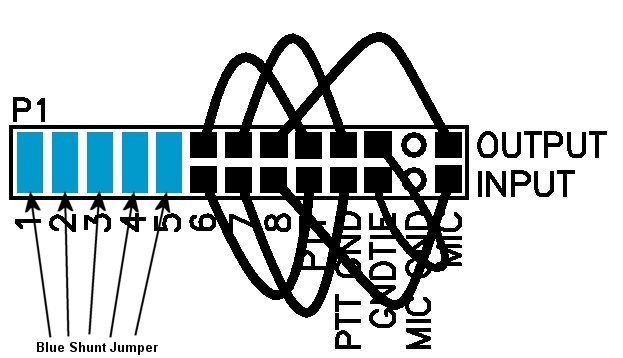

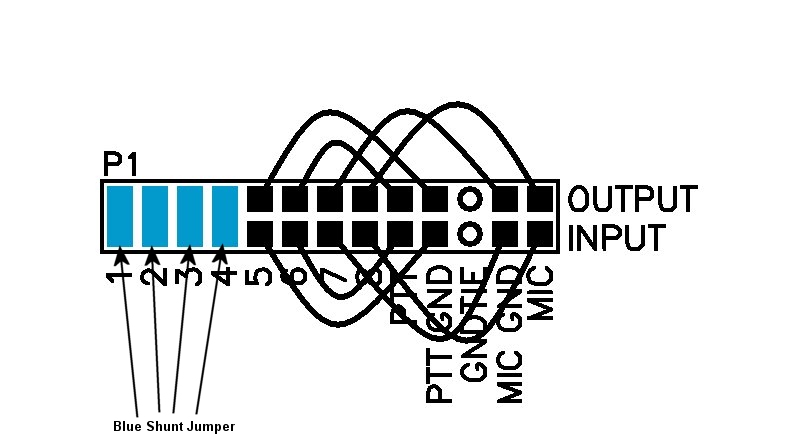

| Typical newer Yaesu; FT1000MP/MK V,FT847, FT990 etc. |
| Kachina |

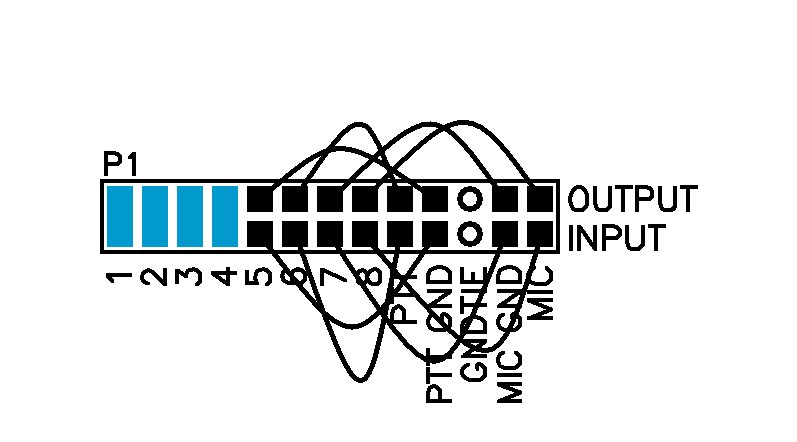

| PATCOMM PC-16000A |
| Radio Shack HTX252 2 Meter Radio |

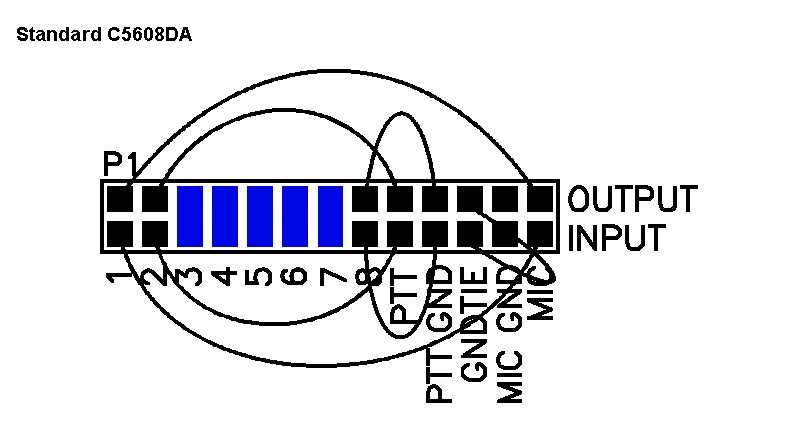

| Standard C-5608 DA |
|
RJ45 8 WIRE MODULAR MICROPHONE
MIC PLUGGED INTO BACK OF RIGBLASTER
CRISSCROSS MICROPHONE JUMPER DIAGRAMS |

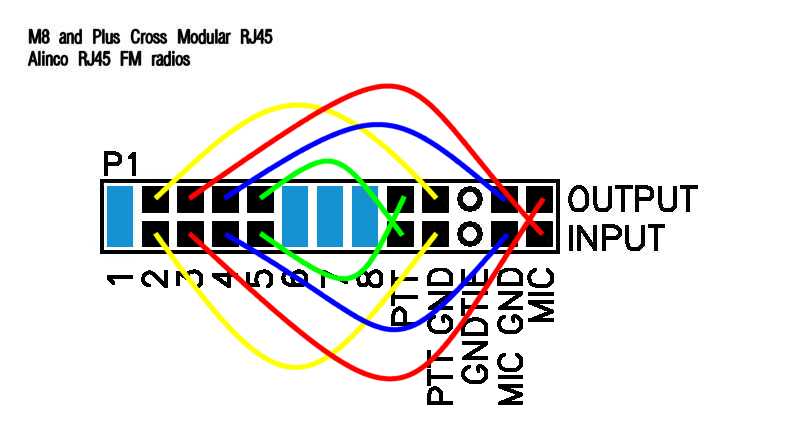

| Alinco DR605 RJ45 modular crisscross diagram. |
| Icom RJ45 modular crisscross diagram. IC706 (all versions) and most RJ45 Icoms |

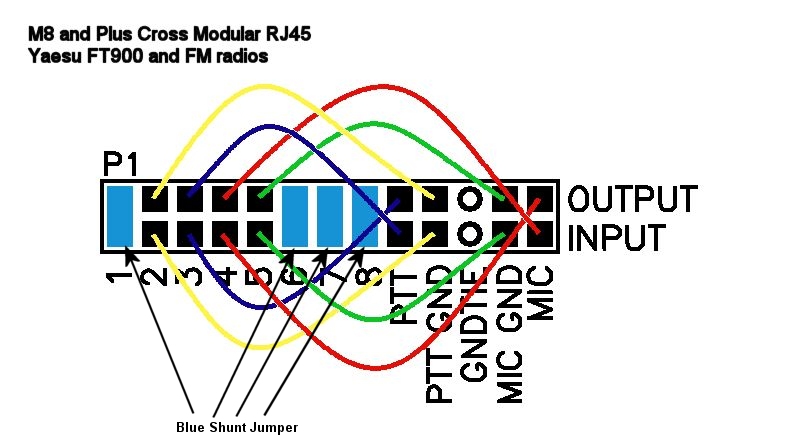

| Yaesu RJ45 modular crisscross diagram. FT817,FT900 and most RJ45 Yaesu radios. (not for RJ22 models) |

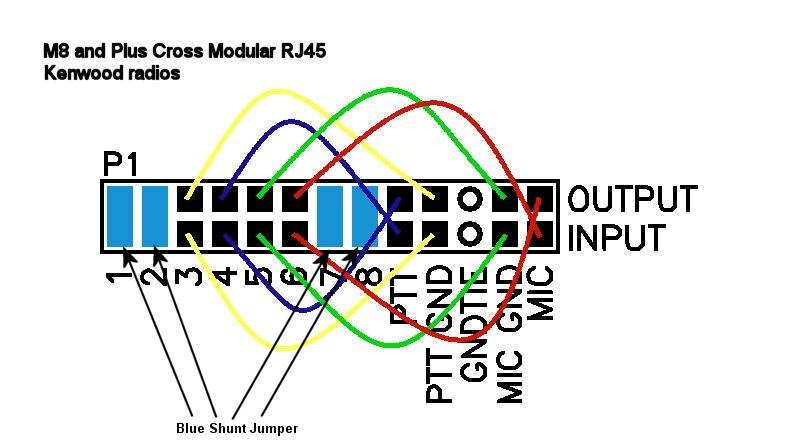

| Kenwood RJ45 modular crisscross diagram. Most RJ45 Kenwoods. |
| Kenwood TS-480SAT & TS-480HX |

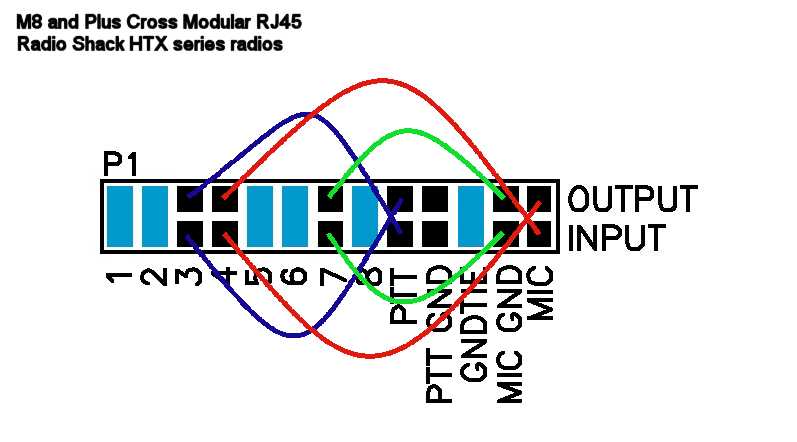

| Radio Shack RJ45 modular crisscross diagram RS mobile rigs (HTX-212, HTX-242, etc) |
|
4 PIN ROUND SCREW ON MICROPHONE
ONLY FOR USE WITH ACCESSORY 4 PIN (4T8/KIT) CONVERSION KIT
JUMPER DIAGRAMS |

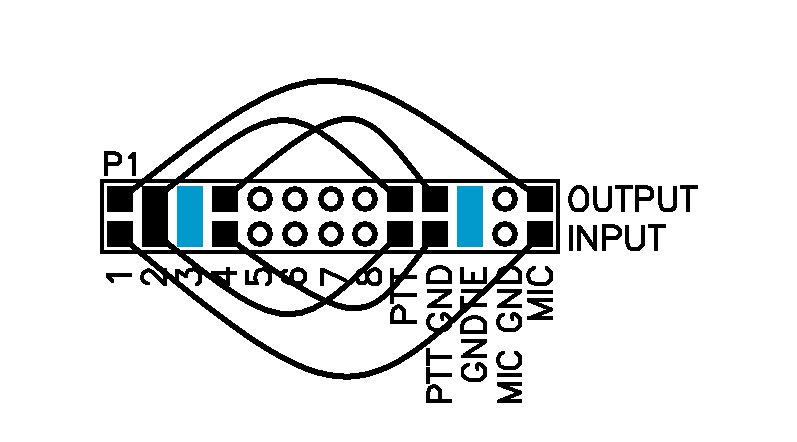

| Icom 4 pin, inc. IC211 |

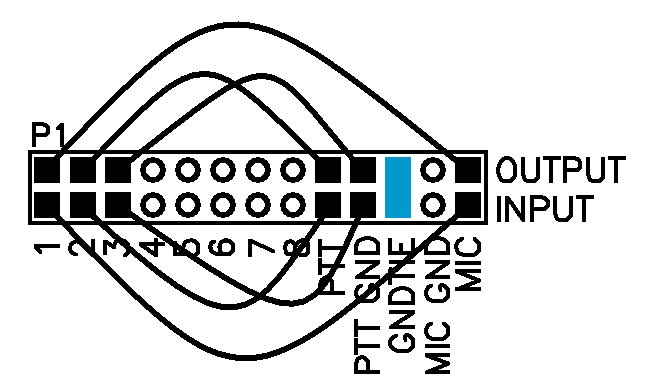

| Drake TR7 4 pin |

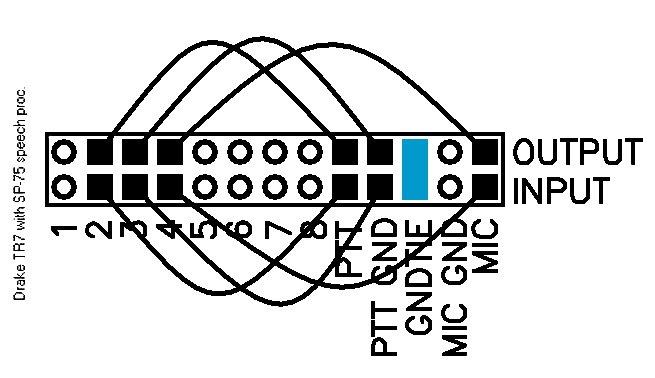

| Drake TR7 with SP75 proc 4 pin de W4AWM |

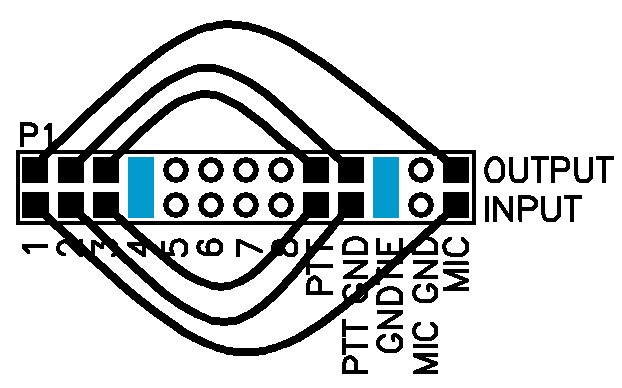

| All Ten Tec 4 pin |
| Typical Kenwood 4 pin; TS430, TS830 |

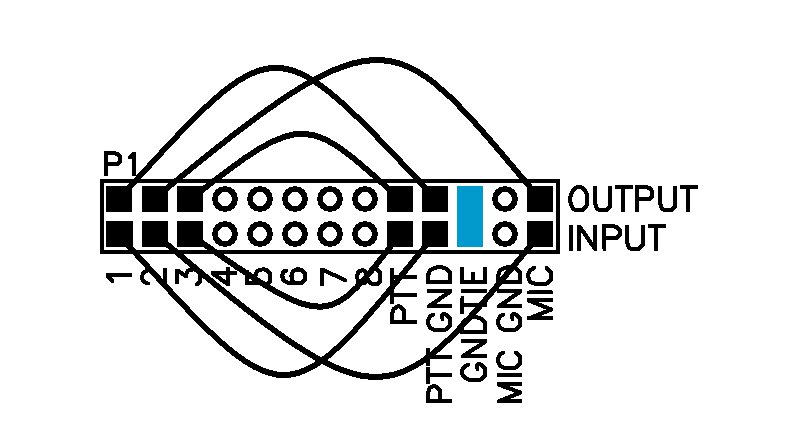

| Typical Yaesu 4 pin |
|
RJ22 6 WIRE MODULAR MICROPHONE
ONLY FOR USE WITH ACCESSORY YAESU MODULAR 6 CABLE
JUMPER AND CABLE DIAGRAMS |
| Yaesu; Modular 6 Radios (Only with Yaesu Modular 6 Custom mic Cable Cable from West Mountain Radio) |

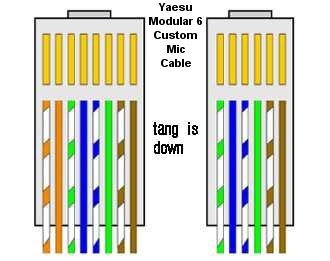

| Yaesu; Modular 6 Cable wiring |
| Top of Page |
|
| THE COMPUTER WILL NOT ACTIVATE TRANSMIT.
|
|
Assuming your RIGblaster is connected to your computer's serial port and the RIGblaster is propely jumpered and connected to your radio's mic. jack,
you must do the computer boot up test described in the manual. Turn on your computer and boot up Windows, (or most other operating systems) Windows
tests the serial ports during boot up and you should see your rig key up (PTT activation) momentarily at least once during boot up and then go back
off after Windows finishes loading. If this happens you then can be sure that your computer, serial cable and RIGblaster are connected and working
properly.
If after doing the boot up test sucessfully you find your ham software will not key up your rig (PTT activation) you can be sure it must be
a software setup or operating problem, it cannot be a hardware problem. It is usually a setup problem, 7 out of 10 support calls from customers
are due to software PTT control setup problems. Make sure that you have gone in to your software setup (configuration, settings, preferences) or
whatever it is called and "tell" the program what serial (COM) port that you have the RIGblaster connected to. You also must "tell" the program
that you wish that PTT is activated by DTR and/or RTS. YOU MUST DO THIS if you expect the program to transmit with automatic serial control via
the RIGblaster or any other interface.
The proper cable is a standard serial extension cable. Wiring as follows:
SERIAL EXTERNAL MODEM CABLE WIRING
DB9F----------DB9M
1---------------------1
2---------------------2
3---------------------3
4---------------------4
5---------------------5
6---------------------6
7---------------------7
8---------------------8
9---------------------9
shell--shield--shell |
| Top of Page |
|
 |
| SETTING AND TESTING RECEIVE AUDIO.
|
Read this QST article first: "The In's and Out's of a Sound Card"
Reprinted from October 2003 QST,with permission of the ARRL
If you are having trouble receiving, completely disconnect the
RIGblaster and put it back in the box. The RIGblaster has nothing to do with receive. It is only for transmit. If you think it has
something to do with receive you probably have your cables connected wrong. Read the documentation that comes with the ham sound card
software and read the Windows help files regarding setting up and using multimedia sound. Please do not call or e-mail us at West
Mountain Radio with software questions, we have nothing to do with the software or it's support. You should e-mail the software
author if you can not get their program to work.The most direct way to solve a software problem is to try an different program from
a different author. If several programs do not work on receive you may have your receive audio cables hooked up wrong, or you have a
problem with your sound card setup or installation. Refer to the sound card control panel diagram below for a little help. This is a
typical diagram, yours may differ. If you are using a laptop you probably have to use the computer's microphone input and you must
adjust the microphone virtual slider for receive not the line input virtual slider. Don't forget the obvious: you should hear signals
if you expect to copy any; the bands may be dead or your antenna isn't working.
You can have receive hum or noise problems interfering with the receive. You must use the speaker output of your radio plugged in
to the line input of your computer. If you use a low level audio output of radio and especially the mic input on your sound card you
may need an audio isolation transformer for receiving. If you have your computer plugged in to a different branch of the AC wiring in
your house you can expect problems. Plug your computer in to the same AC outlet strip so it is grounded together with your radio.
Note: for VOX activated transmit instead of serial PTT activation you must mute the receive audio input (see sound card playback control
panel diagram below) to prevent receive audio from coming out of the sound card and triggering the VOX. |
| Top of Page |
|
 |
| SETTING AND TESTING THE TRANSMIT AUDIO WITH AUTO SERIAL CONTROL.
|
Read this QST article first: "The In's and Out's of a Sound Card"
Reprinted from October 2003 QST,with permission of the ARRL
Assuming the software you are using correctly activates transmit
(PTT Activation) when you "tell" the software to transmit, continue reading.
With the RIGblaster mode switch set in the "auto" position. Command whatever software you are trying to transmit. Make sure
that the RIGblaster keys up as indicated by the digital LED on the front panel and by the sound of the relay inside the RIGblaster
clicking. Check that at the same time the radio indicates transmit (PTT activation). This must happen in order for audio to be
transferred from the computer and to the rig. If this does not happen go back and read "THE COMPUTER WILL NOT ACTIVATE TRANSMIT" on
this support page.
Your radio must be set to your normal mic. gain setting, the speech compressor off, and the RF Power (drive control) at maximum with
the radio in USB or LSB. The RIGblaster's audio level control should be set initially to max, full clockwise as
viewed facing the control on the back of the RIGblaster. The computer's sound card control master and wave output sliders should be set
to provide enough audio to show approximately 50 % power. Arriving at a proper setting requires a balance of the setting of the RIGblaster
audio level and the computer sound card sliders. You should end up with your computer sliders set between 1/4 and 2/3 of the way up.
If you have difficulty with this setting it is usually due to the sound card settings. First make sure you understand that the virtual control
panels of your computer's sound card usually have more than 35 separate adjustments controlled by virtual sliders and click boxes. If you do not
have enough transmit audio there is about a 90% chance that you need to slide a slider or check a click box on your virtual mixer panel.
TIP:
you must double click the little yellow speaker in the bottom right corner of your windows screen to see your Playback Volume Control panel and
you must go to Options, Properties, Recording to see your Recording Control panel. You may also have to click an Advanced button to set other
settings to set each and every setting for all ham radio programs.
The ONLY way to check that your sound card is generating transmit audio sound is by monitoring it with computer headphones or speakers plugged
in to the RIGblasters audio out jack. You must find at least two sliders, generally on the Playback Volume Control Panel usually labeled Volume
and Wave that adjust the volume of the sound cards output and the level that is fed to your radio to determine it's SSB transmit power output.
If these virtual controls are not visible or they do not function you must fix your computers sound card installation so that it works properly.
If moving the Wave or Volume left hand slider has no effect you have a improperly installed sound card software installation. Refer to the
manufacturer of the sound card to fix this, generally they will have a web page with a download of the exact correct driver installation file for
the specific make and model sound system that is installed in your computer. Do not attempt to re-install a sound card unless you are sure you
have the correct software. Be aware that your sound card almost always good when it doesn't work, it is software, don't go out and buy and new
sound card unless a proper installation fails.
Having computer speakers that are turned up too loud has caused many people to set their sound cards so low that the rig had no output. If
your computer speakers are too loud turn them down with the knob on the front of them and turn up your sound card so the radio will transmit. If
your computer speakers have no volume control un-plug them and turn up the sound card.
If you use low impedance un-amplified speakers or headphones plugged in to the RIGblasters audio output you will effectively short out the
audio from your sound card and your rig will not transmit until you unplug them. You must use proper amplified speakers or a pair of headphones
designed for use with a computer. The only exception is with a sound card that is rated at several watts of audio output, most of them are line
level out and will not drive un-amplified speakers.
It was mentioned before but make sure you have the RF power (drive) control of your radio set at maximum. You must do this even if you wish
to run 2 watts with your 100 watt rig. Your power output is set with the audio level that is fed in to the mic. jack, just like if you speak softly
in to your mic. your radio shows less power. Do note that most rigs will not run digital modes at full power and you want to set this level to
50% power output or less to keep your rig from overheating.
| Top of Page |
|
| SETTING AND TESTING THE TRANSMIT AUDIO WITH VOX CONTROL.
|
Read this QST article first: "The In's and Out's of a Sound Card"
Reprinted from October 2003 QST,with permission of the ARRL
Set your RIGblasters VOX/AUTO switch to AUTO and set adjust
all of your radio's VOX controls so they work perfectly with your speaking in to your mic. Refer to your radio's owners manual
for instructions. NOTE: you mic will not work with VOX if the RIGblaster is in VOX mode. The VOX mode of the RIGblaster disconnects
your mic. and hooks up the computer's audio directly so it will work by VOX, your mic. will still function if you push the PTT switch.
Put the RIGblaster in the VOX mode and set your software to generate transmit audio tones. Turn up your sound card master and
wave virtual volume sliders and set the RIGblaster audio level so that the AUDIO drives your rig to less than 50% of full output
with your RF drive / transmit power knob at max. If your rig doesn't key up by VOX re check all the adjustments and make sure there
is sound coming from the computer when it is supposed to be "transmitting". Check all of the adjustments: Vox gain, Vox delay,
Anti Trip, Mic. Gain, Mic. Compression, RIGblaster audio level, Sound Card Output/Master level and WAV Level. |
| Top of Page |
|
| SETTING AND TESTING THE TRANSMIT AUDIO WITH AN FM RADIO.
|
| Since 75 out of 80 ham radio sound card programs were only intended for
use with SSB radios we did not put audio setup instructions for FM operation in our manual. We wanted to keep our manual clear and to the
point as most people do not like reading manuals anyway, We note on the back of the manual in bold print:
"IF YOU CAN'T FIND IT HERE GO TO OUR SUPPORT PAGE"
Recently a friend, K1RFD, wrote a second in a series of FM sound card programs making further RIGblaster instructions necessary.
The first of K1RFD's FM programs was EchoStation, a full repeater controller and club announcement machine; the second is EchoLink.
EchoLink enables anyone to connect the Internet to their radio, using a RIGblaster. Previously there was only sound card packet or SSTV
for FM operators.
With an FM transmitter you do not normally have mic. gain, speech compressor, ALC meter or power output meters to watch or set.
FM audio level should be set either with a deviation meter, AC millivolt meter or by listening on a second receiver. If you lack the equipment
or technical experience simply listen to your signal on a second receiver. Set your audio level so that your radio sounds as loud as other
stations. Do not confuse how loud the audio (modulation) is with how strong your signal is. This is easily done on packet as there are usually
several stations on the same frequency. With voice or SSTV it is going to be harder to find a signal to match to. You should with some
effort be able to set your radio's audio level (modulation) being fed from the computer through the RIGblaster to match another good signal.
Presently EchoLink does not have detailed instructions on how to do this. Understand that if you are setting up a EchoLink link station or
repeater link that you must have a an audio signal (VOIP) coming from remotely from the Internet to your computer and then out of your sound
card through the RIGblaster to your radio. You must have two computers and two Internet connections to test this audio level. Also consider
that if the other computer is set too loud or too soft your radio's modulation level will be off even if you set it well. |
| Top of Page |
|
| MY AUDIO IS NOT PERFECT WHEN I HAVE MY COMPUTER MONITOR ON.
|
| CRT computer monitors have strong AC magnetic fields, not
a problem with a laptop or LCD display. Make sure that the RIGblaster and all the associated cables are not too close to your
computer monitor. If your reports are not identical to the reports you get without the RIGblaster and it's cables, turn off your
computer monitor and leave the computer on. If turning off the monitor fixes the problem you must move the RIGblaster and it's
cables further away from the monitor. Of course you will have similar problems if the RIGblaster jumpers are not installed
correctly.
|
|
| DIGIPAN PROBLEMS
|
| If you are having trouble with DigiPAN stop using it and try
WinPSK! We have had numerous reports of DigiPAN having a blank waterfall display. In QST there is a report of this which was cured
by increasing the display colors to 256 colors or higher. We have experienced this but we were running high color and we fixed it by
re-booting the computer. We have also had reports, and experienced it ourselves, of, DigiPAN not working with the serial port. We do
not know what causes this but they are aware of the problem. We fixed this by completely removing and re-installing the program.
|
| Top of Page |
|
| THE MYSTERIOUS MISSING TRANSMIT AUDIO.
|
Read this QST article first: "The In's and Out's of a Sound Card"
Reprinted from October 2003 QST,with permission of the ARRL
This is a good one and has gotten many. It goes like this,
you hook it up and the rig doesn't get any transmit audio, a week of evenings later you call West Mountain Radio and we usually help
discover the problem was one mouse click away, literally a week of evenings and it was a mouse click.
This paragraph has evolved from many phone calls and some the problems may be a mouse click but they turned out to be obscure and
subtle.
CHECK THE FOLLOWING AND DO NOT MISS OR IGNORE ANYTHING!:
Make sure you are plugged in to the OUTPUT of the sound card to feed the "Audio in" of the RIGblaster. Either the line out on a
desktop or the headphone output of a laptop. The thing that will get you is in the dark corner of your computer you can't see the
little infernal "international symbols" that stand for the right jack. Don't make your self feel silly make sure you have the output!
Make sure you are using a STEREO 1/8" 3.5 mm mini plug cable. The kind with a plug EXACTLY like the ones on Walkman style
headphones. They must have three connections commonly referred to as tip, ring and sleeve. Make sure you have the same plug on
BOTH ends. DO NOT USE RCA phono plugs, don't laugh someone did this. An RCA phono plug is NOT a phone plug, notice phone/phonO......
If you use a mono cable with 2 connections just tip, sleeve you will be shorting out one channel of the sound card and the other
channel will be pulled down by the attenuator network in the RIGblaster due to the short circuit created by the wrong plug. It
may work with a mono cable but you will get less than half the audio for transmit that you normally would. BTW mono is OK for
the receive connection.
TOO MANY volume controls, yes you may have as many as 7 adjustments between the computer the RIGblaster and the radio. The
combination of which will make it appear that you have no transmit audio. You have to adjust them all for the best compromise
and end up with proper mic. audio using your mic. simultaneous achieving the proper modulation level for sound card transmit.
On your radio you probably have mic. gain (set it for your mic. to work properly), your speech compressor (off for digital modes),
your drive adjustment (turn it up all the way and use the audio adjustments to set digital mode transmit power output).
The RIGblaster only has one adjustment on the back and it is used to achieve a balance between your computer and your radio.
Turning it clockwise looking at the back of the RIGblaster gives you maximum audio and a maximum setting is usually too high.
Here is where Bill Gates gets in the act and this is most people get messed up. Remember you have to push the "START" button
to turn your computer off right?!! Remember this when you go to adjust you sound card. Little known by many is the hidden control
panel that controls all the different types of sound the switching and audio routing of the sound card. If you take your mouse and
"double click" the little yellow speaker icon that is usually located in the bottom right corner of your computer screen you will
find a nifty panel of poorly labeled slider adjustments with nasty little check boxes that make it not work or work. To make matters
worse some of the adjustments you need may be hidden and have to be dug out by you. If you get your RIGblaster transmitting without
understanding the Volume Control panel then it is just dumb luck. Please understand that these instructions are for a typical sound
card volume control panel and they ARE different on different computers and sound cards. The all the controls have a horizontal
balance slider and you must put these all in the middle. The left had vertical control is the "master" which controls everything
that comes out of your sound card, it must be pushed up. You must UN-mute or select the master along with the line in and the wave
output. The wave output is your "transmit audio" adjustment but it can be defeated by the master, remember the one on the left that
you are supposed to have up. Make sure that you have the master and the line turned up until you are transmitting the proper level,
half way may not work, 3/4 may not work all the way up is too much. BTW the line in sets the receive audio level on a desktop
installation but the mic. usually sets the receive for a laptop. Experiment with everything until you have a total understanding
of what all the mouse knobs do. Note: if you don't see the "wave" adjustment you may have to go to the volume control
"Options" and them "Properties" and then select the missing ones. It is a good idea to mute, turn down or de-select the ones you
are not using, like midi, CD, telephone mic. (on a desktop).
HERE IS ONE THAT GOT US AND OTHERS: Several RIGblaster customers seemed to be doing everything right but they had no audio
with popular PSK31 programs.
Here is what it is: if you select less than 500 Hz or, too high, more than 3000 Hz on your DigiPan or WinPSK program by
clicking on the far left or far right sides of the waterfall tuning screen, IT WILL NOT WORK.
What is going on is you can't hear 150 Hz come out of a 1" laptop speaker and worse yet your SSB transmit audio filtering in
your radio can't "hear" it either. It will appear that your RIGblaster isn't hooked up. Do not get caught by this trap. We
stumbled on it by accident with a customer after going through everything step by step.
If anyone has figured out any other way to make their RIGblaster not work please tell us and the authors of your computer software.
REMEMBER you must hear audio coming out of BOTH channels of the RIGblaster audio out jack with computer speakers or headphones plugged
in. If you do not hear sound at that point, you do not have any sound card audio going in to the RIGblaster, therefore you will not
transmit! |
| Top of Page |
|
|
|---|
| PRECAUTIONS OPERATING THE RIGblaster FROM 12 V DC. |
| It is extremely important that you have a
solid and reliable 12 V ground connection for your radio. If the negative lead powering your radio accidently becomes
disconnected and the RIGblaster is connected to the same 12 V power supply, the 20 amps or so of DC will go through
the RIGblaster and your mic. circuit. You will burn out the RIGblaster and possibly your radio. This is not covered
under warranty. You must follow the simple precautions that follow.
The safe thing is not to connect the negative supply lead for the RIGblaster at all. The RIGblaster will get it's
DC ground return through your PTT ground. The current the RIGblaster draws can easily be handled and you will
eliminate any possibility of damage or a ground loop. If you must connect the RIGblaster power ground to anything
connect it to the ground terminal on the back of your radio, no where else. DO NOT EVER CONNECT THE RIGBLASTER
DIRECTLY TO YOUR STATION'S 12 V POWER SUPPLY TERMINAL. This excellent advise for any type of 12 V powered accessory
connected to your radio.
When using one the wall cubes that we supply you do not have to worry about this. You will have full ground
isolation safety.
Also note: if you lose your radio's negative supply lead connection you may burn out your computer via the connections
through your computer back to ground.
Always make sure your 12 V powered radio is properly connected to it's 12 V power supply.
You may order a DC cord from us or if you need it in a hurry Radio Shack has a plug which they call an Adaptaplug
"D" 5.5mm O.D.x 3.3mm I. D. part number 273-1707. The Radio Shack part is a just a plug, you still need their cable
to go with it. Do not buy or use a cigarette lighter plug, you may smoke your radio and the RIGblaster and not a cigarette.
|
|
| I NEED HELP GETTING THE COVER ON OR OFF.
|
| On the first production RIGblasters the cover fit snugly and
we were very happy with the sheet metal work. This causes a problem, if you put the sheet metal screws in they slightly extrude the
metal and that sort of locks the top cover on the bottom one. We are now having the sides of the top covers bent to slightly less than
90 degrees so that the top covers springs out and comes off easily. If your cover seems to be stuck on after taking the screws out,
with your fingers press it apart at the front lower corners and lift up. BE CAREFUL NOT TO PUT PRESSURE ON THE SWITCH LEVERS, YOU WILL
BREAK THE SWITCHES. After getting it off carefully bend the bottom edges of the sides of the top cover out about enough to leave approximately.
1/32" clearance and it should be easy to get on and off.
We thought it was easier for everyone to ship the RIGblaster with the top cover loose for jumper installation. Some people have had
trouble getting the side screws in even though the pilot holes are exactly the correct size for # 6 sheet metal screws. You must use a
good (not worn out) # 2 Phillips screwdriver a #1 will not work. Make sure that the back cover is all the way forward over the connectors
so that the side screw holes line up, again BE CAREFUL NOT TO PRESS ON THE SWITCH LEVERS WHILE PUTTING THE SCREWS IN.
|
| Top of Page |
|
| RF OR GROUND PROBLEMS.
|
| Much to our amazement we have had very few reports
of problems. If you install your system according to our manual and use a microphone that is made by the radio manufacturer
you will not have a problem. Out of perhaps 20 reports of problems out of 11,000 RIGblaster customers, two of them were
caused by operation from the station DC supply instead of the wall cube that we include with the RIGblasters. Three others
had there computer plugged in to a different home wiring circuit from their ham station. All of the other problems were due
to a particular brand of after market microphone. One customer thought he had a problem because he did not have the RIGblaster
top cover screwed on tightly.
If you do have a after market mic. try the original mic. that was supplied with the radio. The only definite help we have
with the after market microphone problem is that they use the "older style" Yaesu common PTT/Mic ground wiring scheme. This
is true even if they were sold to work with a newer Yaesu. Use the "older style" Yaesu jumper diagram in our manual if you
have an after market mic., even if you have a newer model Yaesu radio.
|
|
| SEQUENCING WITH HIGH POWER VHF STATIONS.
|
| Sound card software should have sequencing delays written in to the program
as K1JT's, WSJT does. If computer software is going to automatically key up your station you need to consider proper transmit receive sequencing just
as if you were controlling PTT manually.
A RIGblaster really has nothing to do with proper sequencer operation and should not require any changes to a properly functioning, sequenced
station. The RIGblaster simply mimmicks your PTT switch with a set of relay contacts. If your PTT switch was sequenced properly the RIGblaster will
be also, whether or not you are keying PTT via software or you mic's. PTT button.
If you have not yet set up a sequencer, the RIGblaster may make it a little easier to connect your sequencer. You may intercept the PTT control
line by connecting to the RIGblaster by cutting the jumper wire on the "PTT OUTPUT" of the jumper strip.
The following has nothing to do with a RIGblaster: connecting a sequencer to a mic. PTT switch alone is not fool resistant, much less idiot proof.
You still may have a MOX button on your radio and break in CW control. If you ignore those PTT control options it is just a matter of time
before push the wrong button and toast your preamp or relays.
|
| Top of Page |
|
|
