NEW VERSION 2.1 SOFTWARE CLICK HERE TO READ MORE!
|
|||||||||||||||||
More accurate calibration and higher effective resolution Tests to 55 volts (48 V lead acid Telecom systems) Capable of regulating up to 30A down to 0.9 volts with the best cells Microsoft® Windows® XP through Vista® certified, with Windows® 7support Dual FET's for lower resistance and higher reliability Arcing connection protection circuit Aux I/O ports for future software upgrade to do cycle life testing CBA III Consumer version: $149.95 (with limited 1 year home use warranty) CBA III Pro hardware version: $199.95 (with calibration data and limited 1yr commercial warranty) CBA III Pro hardware with Pro software upgrade: $299.95 **Save $20** (Supplied with calibration data and limited 1yr commercial warranty and Pro software upgrade) Pro software upgrade: $119.95 (Many additional features for use with any CBA II or III) |
|||||||||||||||||
Click on image for larger picture |
|||||||||||||||||
|

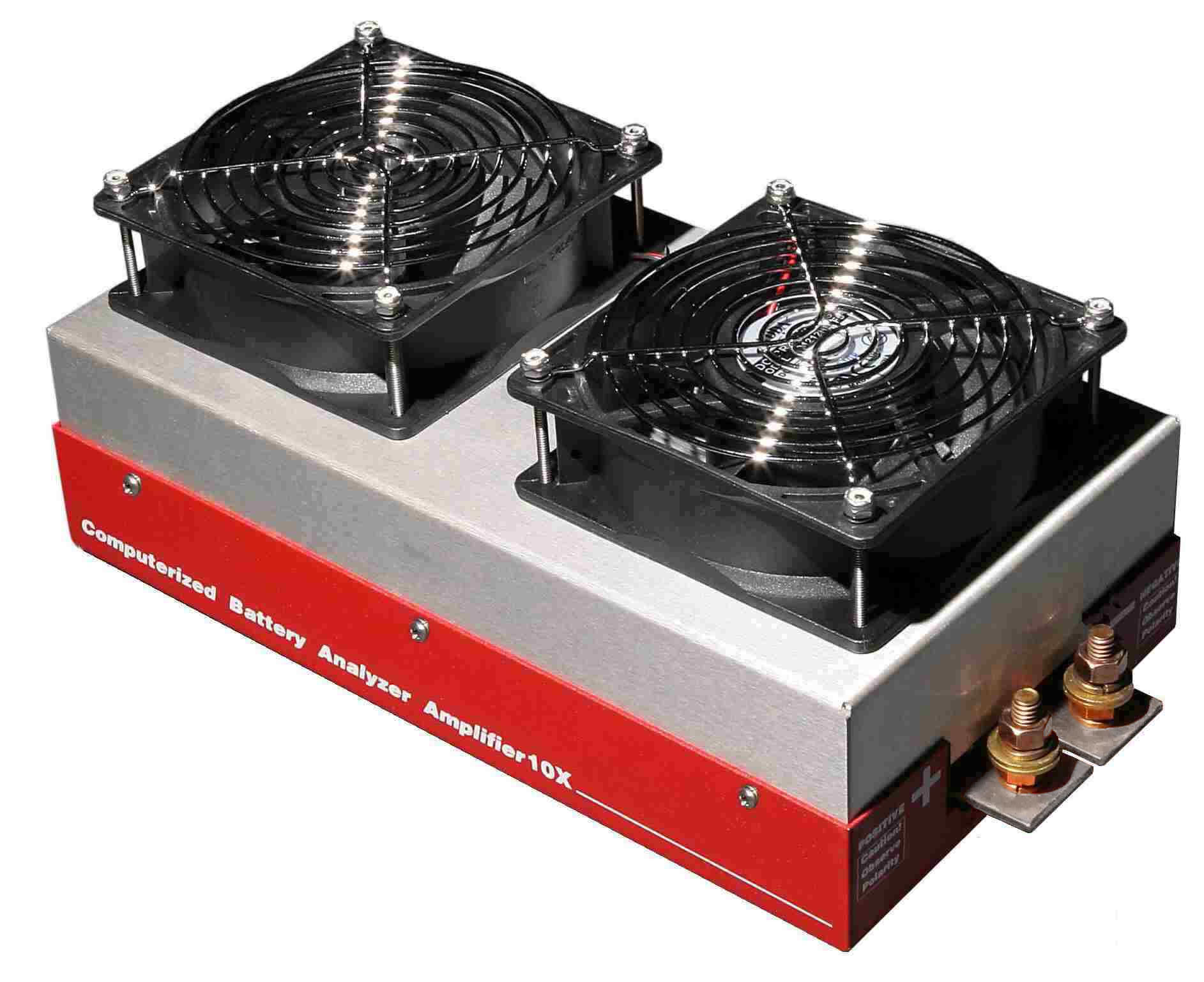

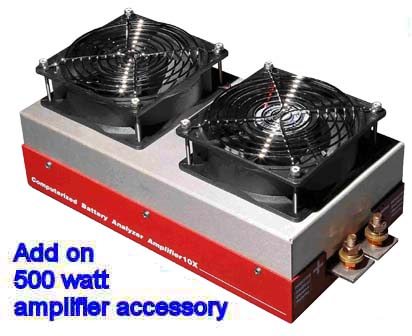

Accessory amplifier to discharge at up to 2000 watts
Click for more information | CBA III FEATURES
|
CBA III DESCRIPTIONThe CBA is much more than a simple battery voltage tester or a battery load tester. Unlike a simple load tester the CBA will test
virtually any type or size of battery, any chemistry, any number of cells up to 55 volts. For the first time and for a reasonable price,
anyone can do scientific tests of their batteries by letting their computer do all the work.
|

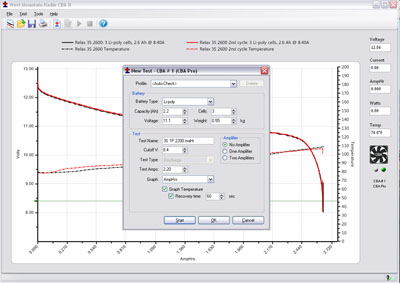

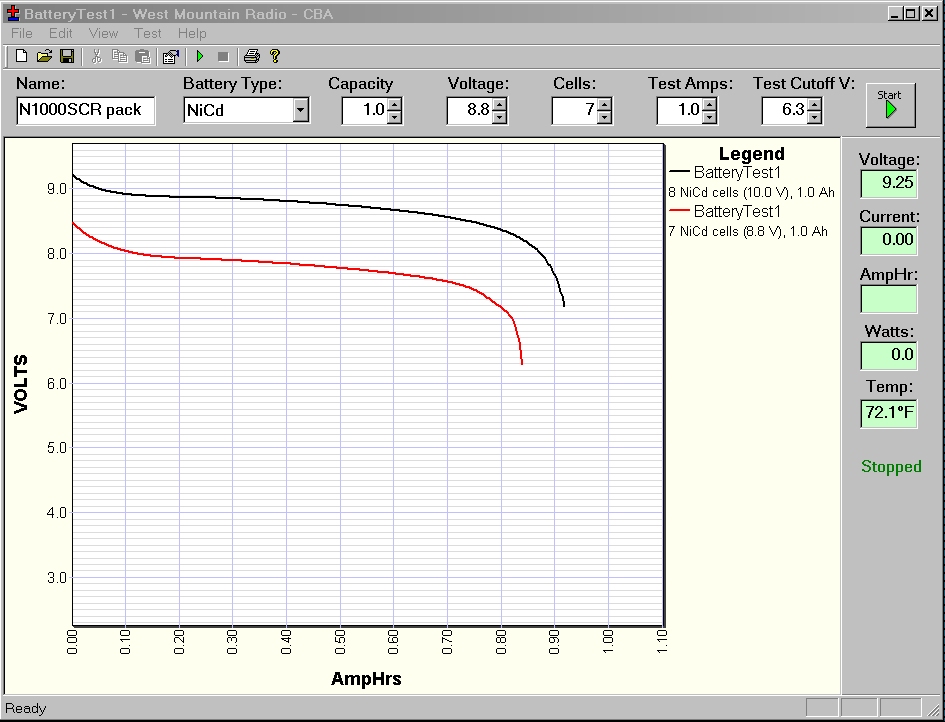

The CBA is capable of higher test rates than other testers: up to 40 amps or 150 watts, whichever is higher. It not only tests the total amount of energy stored in a battery (capacity in amp-hrs), but it graphically displays and charts voltage versus amp-hours. Unlike a resistor load it has an electronic constant current load that is controlled both with software and electronics. Graphs may be displayed, saved and printed. Multiple graphs of the same battery, or multiple batteries, may be compared or overlaid, a very useful feature. Battery tests may be printed on a color or black and white printer. You may also print convenient test labels to be placed directly on your batteries to remember the last time they were tested and how they performed. A CBA will measure the temperature of a battery under test using the optional external temperature probe. The temperature probe will provide automatic over-temperature shutoff a preset or user selected temperature limit. The CBA uses a high grade Powerpole battery connector for which adaptors may be made, or purchased as an accessory to connect a battery. A CBA is ruggedly built, compact and has a high performance cooling system with a quiet fan. LED indicators show test status from across a room. The CBA uses an 8051 based micro controller. Each CBA is individually computer calibrated to high accuracy. The electronic load uses a pulse width modulation system to control a pair of power MOS FET transistors using both electronic and software current regulation. The on-board micro controller provides the plug-and-play USB interface to the computer. The software supplied with the CBA is easy and intuitive to use. It provides automatic sensing of the battery cell count and recommends a safe maximum discharge current and minimum safe cutoff voltage for your batteries. The system of software and hardware is designed to protect both the CBA and the batteries that are tested. We think that you will find the CBA a useful and essential tool for anyone that depends on batteries in critical applications. You will learn new and valuable information about your batteries that cannot be determined any other way. Using batteries without a CBA is like driving a car without a gas gauge. CBA III SPECIFICATIONS
|
Computer System Requirements
A PC with a Pentium 233 or better At least an 800 X 600 graphics card and display monitor 98SE, W2K, XP, Vista®: 32 or 64 bit, Windows® 7: 32 or 64 bit An available USB port
Recommended:
AMD or Intel 1.2 GHz or better Better than 800 X 600 graphics and display monitor Windows® XP or Vista® 32 or 64bit 1 GB RAM An available USB port (external hubs not supported)
For graph and label printing:
Any Windows compatible, laser or ink jet, color or black and white, printer. Avery 5160 labels are required for label printing. Powerpole® is a registered trademark of Anderson Power Products | Dealer Inquiries Invited | |
